Hygienic Tank Manways and Tank Accessories

Related Products

Product Specification

Zenith offer a very comprehensive range of Tank Manways and Tank Accessories.

Manways are an integral part of tanks and vessels.

Zenith Manways are manufactured with the highest quality materials and using the most modern manufacturing processes.

We can offer both Pressure and Non-Pressure Manways.

Zenith Manways are very cost effective and of the highest quality.

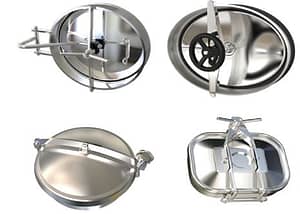

Non-Pressure Round Manways (316L, 304)

  • Opening Direction: Manways can open from either side depending on customer’s preference.
  • Available size range: 200mm – 600mm

Pressure Manways (316L, 304)

  • Working Pressure: Up to 6 bar working pressure. Full Vacuum rated.
  • Available size range: Available size range: 200mm – 600mm

Oval Pressure Manways (316L, 304)

  • Opening Direction: Inwards, outwards and inwards/outwards opening.
  • Available size range: 440mm to 540mm
  • Working Pressure: – 1 bar – 5 bar

Rectangular Pressure Manways (316L, 304)

  • Opening Direction: Outwards and inwards opening.
  • Hinged on either side according to preference.
  • Available size range: 420mm to 530mm
  • Working Pressure: – 0.5 bar to 2 bar

Seals are available in NR – Natural Rubber, Silicone, EPDM and Viton.

Download the Spec Sheet
