Product Specification

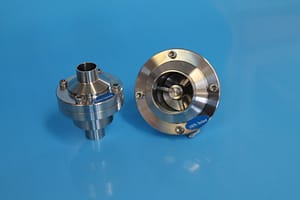

Zenith Stainless Solutions offers a full range of high quality hygienic non return valves, also known as sanitary check valves. Our valves have proven functionality and reliability and are widely used in the worldwide processing industry.

Products Include:

  • Hygienic Non Return Valves
  • Sanitary Check Valves

Special Features:

  • Superior Hygienic Design
  • Spring Activated Plunger.
  • Easy to assemble/disassemble
  • For use up to 150 psi/10 bar
  • 100% Tested & Inspected

Hygienic Non Return Valve Specifications: Tri clamp, US 3A, BS, RJT, SMS, DIN 11851, ISO.

  • Material: 316 body, piston & spring. Disc forged 316L. Flange forged 316L.
  • Seal Material: Food Grade EPDM body & piston seal.
  • Surface Finish: All wetted surfaces are polished <0.5 Ra
  • Spare seal kits available.
  • Valve Ends: Weld/Weld, Male/Male, Male/Female, Clamp/Ferrule.
  • Sizes: 1/2″ – 4″ and 12.7 mm – 104 mm

We welcome the opportunity to quote for your hygienic butterfly valves requirements.

Please see our specifications sheets for further details on our Valves.

Download the Spec Sheet       Download USA Spec Sheet
