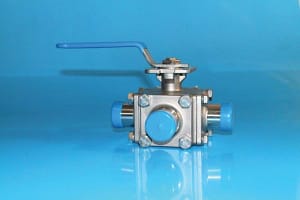

Hygienic Ball Valves 3 Way

related Products

Product Specification


Zenith Stainless Solutions offers a full range of high quality stainless steel hygienic ball valves 3 way.

Our hygienic stainless ball valves have proven functionality and reliability and are widely used in the worldwide processing industry.

Popular ends include weld and tri clamp fittings.

Products Include:

  • Hygienic Ball Valves
  • Actuators to suit
  • Hygienic Two Way Ball Valves
  • Hygienic Three way Ball Valves

Hygienic Ball Valves 3 Way  Specifications:

Tri clamp, US 3A, BS, RJT, SMS, DIN 11851, DIN 32676, ISO.

Special Features:

  • Superior Hygienic Design
  • 3 way
  • L port and T port available.
  • Full cavity PTFE seat.
  • ISO mount plate.
  • Easy to assemble/disassemble
  • Low Torque – longer Seal Life
  • 100% Air tested under water at 100psi in open and close position.
  • Hydrostatic test pressure ¼” to 2” 1500psi and 2 ½” – 4” 1,200psi.

General Characteristics:-
Size Range:

  • INCH: 1/2”– 3/4” – 1”– 1.5” – 2” – 2.5”– 3”– 4”

Materials:

  • Valve body – 316/316L Stainless Steel
  • Finish – All wetted surfaces are polished <0.6 Ra
  • Seals – Food Grade PTFE

Pressure Rating:

  • Max Pressure up to 10 Bar.

Please see our specifications sheets for further details on our Sanitary Ball Valves.

Download the Spec Sheet
